Base Plates for Measuring Machines ( Page 1 | Page 2 )

The STOLLE company today is one of the largest supplier for measuring plates in the field of horizontal arm measuring devices. All well known measuring machine manufacturers in Europe are our clients.

We provide your measuring plate for your individual guiding system. Guiding systems or even various guiding systems integrated in the same plate are possible.

Please contact us with your request. We will work out an individual offer for you.

(right)

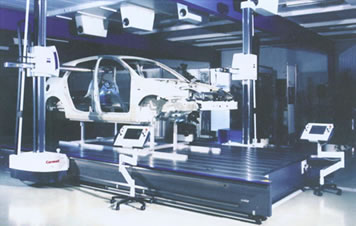

Measuring plate with console measuring machine
(left)

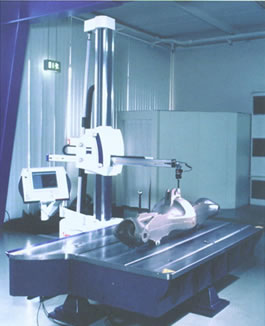

Measuring plate with console measuring machine
