Angle Plates, Special Design

This special construction is chiefly for work piece support on large boring and milling machines. The angle plates are often used for horizontal dynamic test facilities in conjunction with a floor plate. These plates can be supplied for any application to any loading.
The single angle plate sections can also be used separately. Large plate areas can be constructed by placing angle plates alongside to each other.

Angle plate for heavy duty cutting work. Plate surface 3500 x 2500 mm

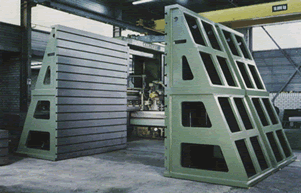

A matched pair of angle plates each in two-piece construction, height 4000 mm, mounted on an isolated foundation floor plate for highly dynamic testing

(left)
Angle plate in special construction for easy tooling,
1800 x 1100 x 800 mm

(right)
Heavy angle plate with for electric motor test rig,
200 x 1800 x 2000 mm
