Blueing Plates , Type TLN

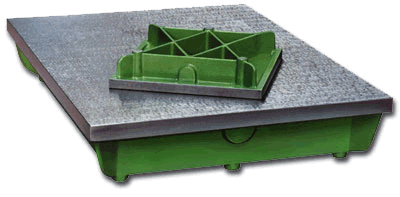

This lightweight STOLLE marking plate is made from special cast iron / steel alloy. The top surface is machined to DIN 876, the sides are machined square to the top surface.

- DIN 876 III planed/milled
- DIN 876 II, I, 0 scraped

Optional extras include protective covers, lifting handles or leveling jacks. Plates are supplied with external cast surfaces painted green RAL 6011. The support frames are made for a working height of approx. 800 mm (31.5"), although various working heights are available on request. Dismantled models are supplied if the plates are intended for export shipping. For the larger sizes of these surface plates we recommend an assembly on supports.
We deliver suitable bottom lockers for surface plates on request in a stable metal construction.

For larger plate sizes see also "Surface Plates " or contact us for a custom design.
