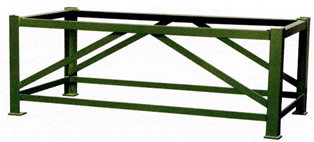

Heavy Duty Support Frames, type UU

The support frames for straightening plates consist of a heavy duty construction with welded steel sections, measured to give an approximate working height of 800 mm (normal height). Other working heights are available on request. For straightening plates of larger dimensions it is advisable to use VS supports.
