T-slot Tables

We manufacture T-slotted tables on support frames to your special request.

For design purposes please provide the following information:
_- Table Top size (length x width)
_- Working height (usually 32")
_- No. of T-slots (or non)
_- Size of T-slots (slot opening or bolt size)
_- Special payload conditions
__ (for example load on the table 5 tons)
_- Adjustable feet with or without vibration dampers
_- Any special stiffness requirements
_- Special paint colors
_- Any other additional information and requirements
contact us at contact@cfm-itbona.com



download our PDF flyer
Table 9’ x 3’ 3 T-slots DIN 650 28 H12 and 5“
plate thickness. Weight approx. 3 tons

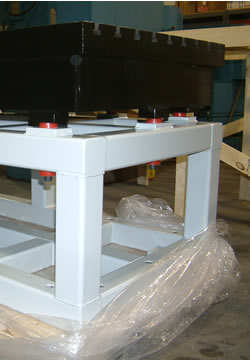

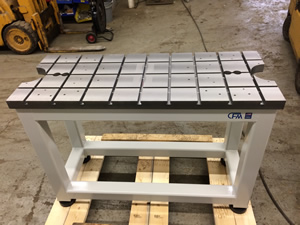

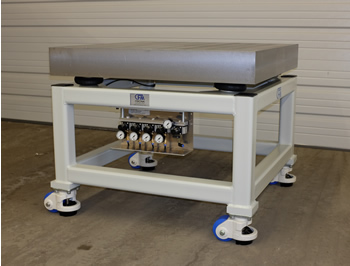

T-slot Table 2000 x 1000 mm with crossed T-slots DIN 650 28 H12 T-slot Table vibration isolated from the sub-frame by air springs

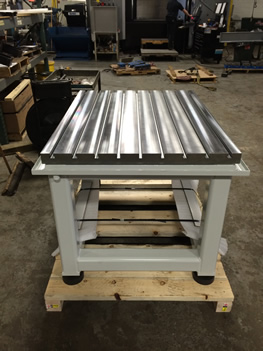

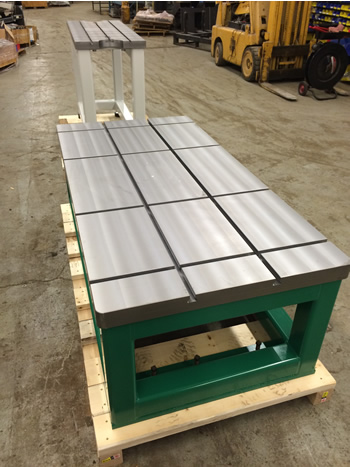

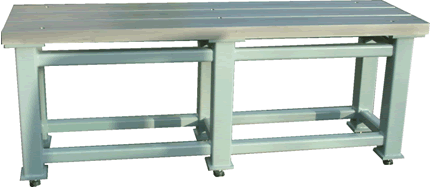

Steel T-slot Table on a heavy support frame
with a first natural frequency >100 Hz
size approx. 1800 x 900 x 800 mm

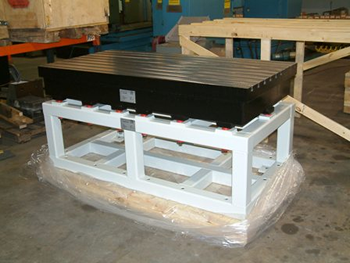

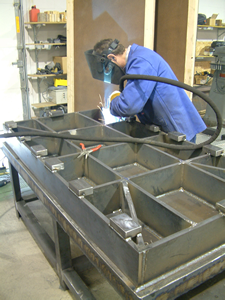

View of the table bottom with welded rib design Isolation pads for vibration decoupling between table plate and frame

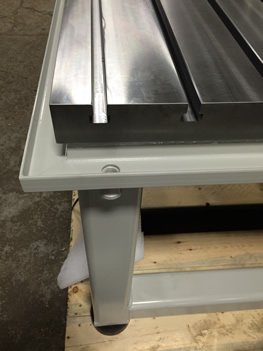

T-slot table with fluid trough Fluid trough with drain T-slot table with crossed T-slots

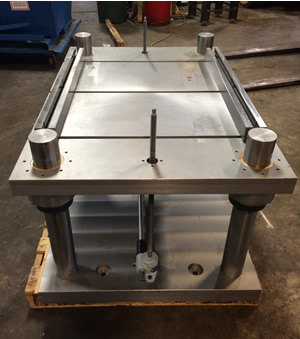

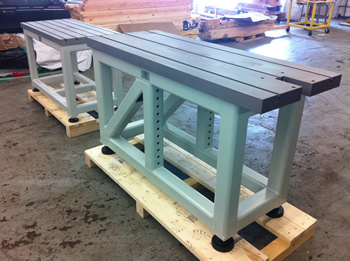

T-slot table with custom support frame Support table for Water Brake or Dynamometer Height adjustable T-slot table

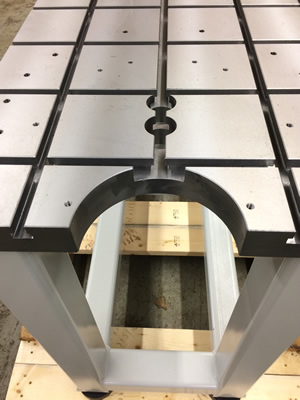

Stainless steel T-slot table with concrete base T-slot table with custom cut-outs for accessories T-slot table close view

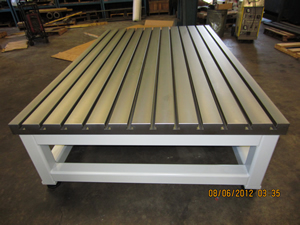

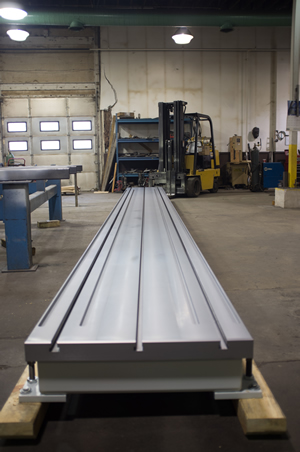

30' (9,000 mm) T-slot table T-slot table extra wide with 12 T-slots T-slot Table with crossed T-slots, fluid trough and shelf on casters

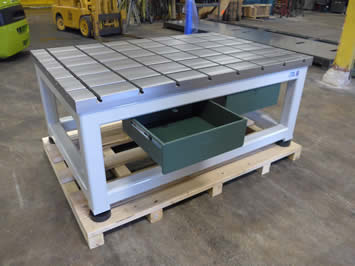

T-slot table with drawers
T-slot table with crossed T-slots 5/8" and drawers
