Plate Supports and Leveling Units

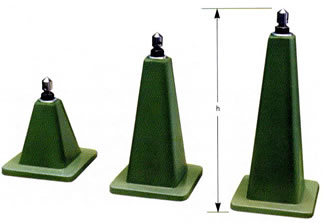

Adjustable Height Supports,
Type VS

Made of cast iron and recommended for the support and accurate leveling of surface plates and larger straightening and welding tables. The
M 30 adjusting screw (M 20 is used on smaller plates) is fitted with a lock-nut. The number of supports required for any particular sized plate is given in the tables. Where very high loading is encountered the number of supports should be increased. The supports can also be supplied with machined bases at extra cost.


No
Approx. Support height
Weight
mm
inch
kg
lbs
1
270 - 320
10.6 - 12.6
24
53
2
345 - 395
13.6 - 15.5
29
64
3
420 - 470
16.5 - 18.5
32 70
4
500 - 550
19.7 - 21.6
38
84
5
570 - 620
22.4 - 24.4
43
95
6
620 - 670
24.4 - 26.4
47
104
7
700 - 750
27.6 - 29.5
49
108
Leveling Unit, Type BE
The leveling unit was developed as a rigid link between surface plate and foundation.

The main casting support of the BE unit is clamped to the foundation with anchor bolts. The level is adjusted by rotating support sleeve A.

Tightening clamp screw C finally secures the table to the leveling unit and prevent further movement of sleeve A.


Support, Type VSK
Support with ball bearing for every precise adjustment.



A: Support Sleeve
B: Plate
C: Clamp bolt
D: Special support seating-hardened
E: Adjustment access
F: Support stand
H: Height of support

No
Approx. Support height
Weight
mm
inch
kg
lbs
1
320
12.6
45
99
2
420
16.5
52
115
3
520
20.5
60 132
