Base Plate Applications
( Page 1 | Page 2 | Page 3 )

(right picture)
Gear box test rig in T-shape arrangement, provided for assembly on air-springs, 6000 x 5000 mm

(left picture)

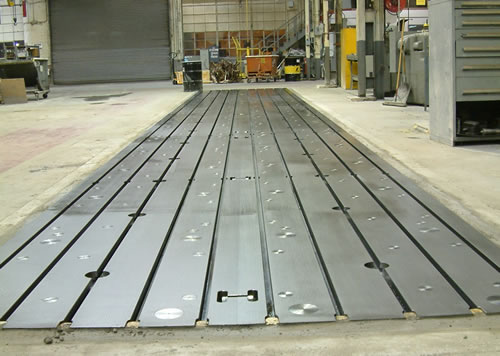

Base Plate area in the size of 18 m x 2.5 m for Turbine Repair and maintanance at GE, Dallas TX

(right picture)
Base Plate area in the size of 21 x 11.5 m for servohydraulic test system. The single plate sizes are 7000 x 2000 mm and 7000 x 1500 mm

(left picture)
Heavy duty Face plate, Ø 3000 mm




_For more information: E-mail: contact@cfm-itbona.com Phone:t +1 (952) 942-6104
