Vibration Isolation

( Page 1 | Page 2 )

Vibration Isolated Base Plates and Foundations
Most Research and Development Centers performing dynamic tests on structures or subassemblies require large inertia masses to react the energy produced by the test equipment. Those inertia masses are commonly build as concrete seismic mass designs with floor plates on top. The floor plates are attached to the seismic mass via pre-loaded anchor frame constructions. Because a seismic mass can not be infinite large, a certain amount of energy is dissipated into the ground. This energy can influence results on other test rigs or measuring devices in NVH labs. For that reason seismic masses can be suspended on steel or air springs. Air springs are suited best if a low natural frequency is required, commonly around 0.8 to 1.2 Hz.

For more information on seismic mass designs and vibration isolation click here.

Air Spring mounting unit

Steel Spring mounting unit

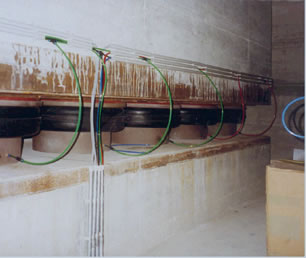

600 to Seismic mass on air springs

RS 30 Align Support

The RS30 Align Support is used where vibration isolation of frequencies above 7 Hz are required. The size of the isolation pad is determined by the load requirements.

Support Type VSD

Vibration isolating support for use with surface plates in standard rooms
