Box Table, Type BT

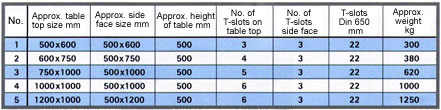

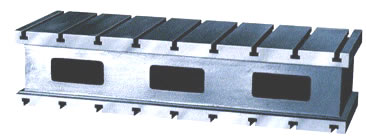

The special design and cast construction of this STOLLE box table allows very high loading and is suitable for use on radial drills or similar machines. The two clamping surfaces are exactly machined to DIN 876/111 flatness accuracy.The base is machined parallel to the top surface. The top and side working surfaces have T-slots to DIN 650-22 H 12. The slots are spaced every 150 mm. Three clamping slots are provided in the bottom flanging for the purpose of clamping the table to the base plate.

without coolant through
witht coolant through


Box table in special construction
