Straightening Plates

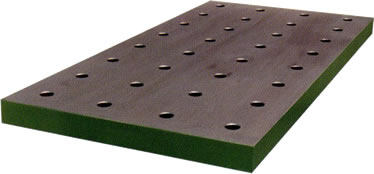

Solid Straightening Plates, Type RM

STOLLE straightening plates are made from a special cast iron / steel alloy giving an exceptional strength and durability. The top surface of the plate is planed or milled, the four side surfaces are machined right-angled. Additional optional features at extra cost include cast or drilled holes for bending or folding pipes, frames, etc. As well it is possible to provide T-slots on request. We recommend our plate support frame UU or a storing on VS supports. Without an information to the required working height we deliver the supports or frames for a working height of approx. 800 mm.

Ribbed Straightening Plates, Type RR

STOLLE ribbed straightening plates are made from a special cast iron / steel alloy giving exceptional strength and durability for heavy duty use. Our technicians have constructed the ribbing in such a way that the plates can be used universally for straightening, welding or mounting, providing their are properly positioned. The top surface of the plate is planed or milled, the four side surfaces are machined right-angled. If required plates can be supplied with holes or T slots at extra cost. A later incorporation is not advisable.
It is also possible at extra costs provide sound absorbing features. The rib channels are filled with an insulating compound and sealed from underneath with a wooden board. It is not possible to equip normal straightening plates with these sound absorbing features at a later time. We recommend our plate support frame UU or a storing on VS supports.
