| Angle
Plates, Type WN |
|
|
|
|

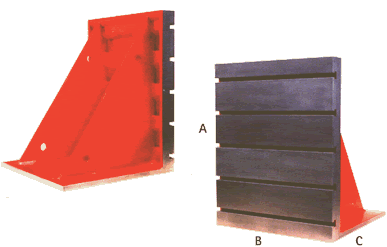

We
offer this multi-purpose STOLLE angle plate in 6 standard
sizes. Special casting techniques and the ideal standard measures
guarantee a distortion free accuracy. The reverse of this
angle plate has two ribs. The vertical work face and the base
is machined to DIN 876 / III, the ends are machined sqare
to these. Angular accuracy to DIN 875, workshop angle II.
The horizontal T- slots are machined to DIN 650-22 H 12. In
standard form the base is plain with no slots or holes, these
can be supplied optionally at extra cost.
|
|
|
|
No
|
Vertical
Face
|
Base
|
T-slots
DIN 650 - H12
|
Weight
|
|
A
x B (mm)
|
A
x B (inch)
|
B
x C (mm)
|
B
x C (inch)
|
Size
|
No.
|
kg
|
lbs
|
|
1
|
500
x 400
|
19.7
x 15.7
|
400
x 400
|
15.7
x 15.7
|
22
|
4
|
180
|
397
|
|
2
|
550
x 550
|
21.7
x 21.7
|
550
x 500
|
21.7
x 19.7
|
22
|
4
|
215
|
475
|
|
3
|
700
x 550
|
27.6
x 21.7
|
550
x 500
|
21.7
x 19.7
|
22
|
4
|
250
|
550
|
|
4
|
700
x 700
|
27.6
x 27.6
|
700
x 600
|
27.6
x 23.6
|
22
|
4
|
380
|
840
|
|
5
|
900
x 700
|
35.4
x 27.6
|
700
x 600
|
27.6
x 23.6
|
22
|
5
|
430
|
950
|
|
6
|
1000
x 800
|
39.4
x 31.5
|
800
x 800
|
31.5
x 31.5
|
22
|
5
|
720
|
1590
|
|
|
|
|
|
|
|

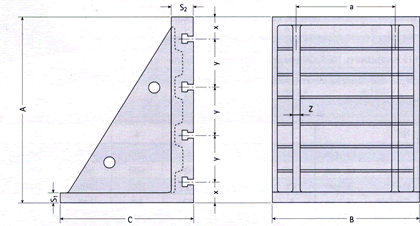

No
|
A
(mm)
|
B
(mm)
|
C
(mm)
|
S1
(mm)
|
S2
(mm)
|
a
(mm)
|
z
(mm)
|
x
(mm)
|
y
(mm)
|
T-slots
DIN 650 H12
|
|
No.
|
Size
|
|
1
|
500
|
400
|
400
|
25
|
70
|
280
|
25
|
55
|
130
|
4
|
22
|
|
2
|
550
|
550
|
500
|
25
|
70
|
370
|
25
|
65
|
140
|
4
|
22
|
|
3
|
700
|
550
|
500
|
30
|
80
|
370
|
25
|
80
|
180
|
4
|
22
|
|
4
|
700
|
700
|
600
|
30
|
90
|
460
|
25
|
80
|
180
|
4
|
22
|
|
5
|
900
|
700
|
600
|
35
|
100
|
490
|
30
|
90
|
180
|
5
|
22
|
|
6
|
1000
|
800
|
800
|
35
|
100
|
550
|
35
|
100
|
200
|
5
|
22
|
|
|
|
|
|
No
|
A
(inch)
|
B
(inch)
|
C
(inch)
|
S1
(inch)
|
S2
(inch)
|
a
(inch)
|
z
(inch)
|
x
(inch)
|
y
(inch)
|
T-slots
DIN 650 H12
|
|
No.
|
Size
|
|
1
|
19.7
|
15.7
|
15.7
|
1
|
2.8
|
11
|
1
|
2.2
|
5.1
|
4
|
22
|
|
2
|
21.7
|
21.7
|
19.7
|
1
|
2.8
|
14.6
|
1
|
2.6
|
5.5
|
4
|
22
|
|
3
|
27.6
|
21.7
|
19.7
|
1.2
|
3.1
|
14.6
|
1
|
3.1
|
7
|
4
|
22
|
|
4
|
27.6
|
27.6
|
23.6
|
1.2
|
3.5
|
18.1
|
1
|
3.1
|
7
|
4
|
22
|
|
5
|
35.4
|
27.6
|
23.6
|
1.4
|
3.9
|
19.3
|
1.2
|
3.5
|
7
|
5
|
22
|
|
6
|
39.4
|
31.5
|
31.5
|
1.4
|
3.9
|
21.6
|
1.4
|
3.9
|
7.9
|
5
|
22
|
|
|
|
|
|
|
|
|
|
