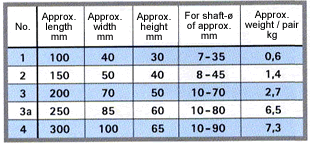

Parallel Vees, Type PAS

STOLLE parallel vees are supplied with different sized vees in each of the four faces, allowing seating to accomodate different shaft sizes exactly.
The vees are made to specific sizes so that even heavier shafts can be accomodated without difficulty. These blocks are milled as matched pairs to DIN 876 / II.



V-Blocks, Type PRI

Clamping features on base make STOLLE vee-blocks ideal for supporting shafts during machine operations or for measuring round work pieces. Supplied with a single vee of 90 degrees machined parallel to the base, available as either normal or fine machined finish.
