Base Plates for Measuring Machines
( Page 1 | Page 2 )

(left)

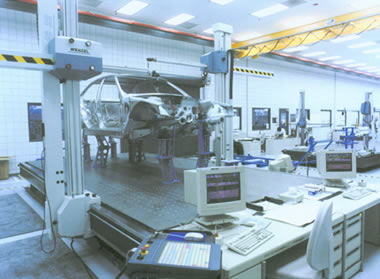

Measuring plate during internal
mounting process
(right)

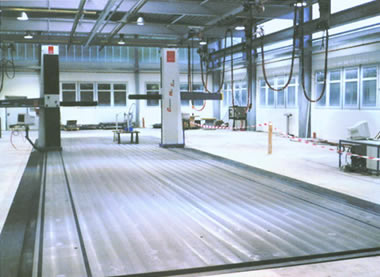

Subsurface measuring device, 25 m long
(left)

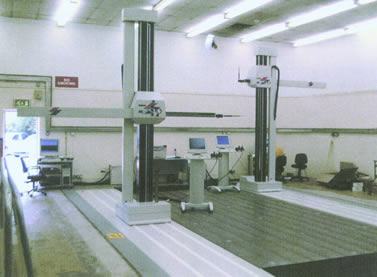

Duplex measuring machine 7000 x 3000 mm, two parts, 7000 mm x 1500 mm
(right)
Measuring Machine

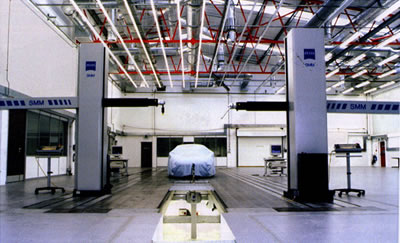

16000 x 3500 mm
(left)

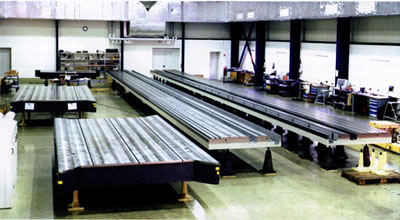

Measuring plate 8000 x 3000 mm with double column measuring device
