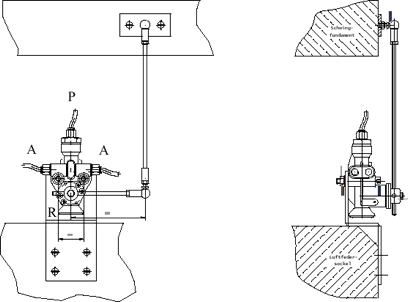

Level control valve NRV - 0.1

The level control valve NRV -0.1 is a mechanical working relief valve. By increasing the mass the control rod of the control valve moves down. The reversing shaft rotates clockwise. compressed air flows from the P-connection to the A-connection and the air spring system will be filled with compressed air. By decreasing the load on the seismic mass the control rod of the control valve moves upside and the reversing shaft rotates anticlockwise. Compressed air flows from the A-connection to the R-connection and escapes into the ambiance.



Level Control Unit MC300 Level Control UnitLC300/302 Pressure Control Unit DC 300
