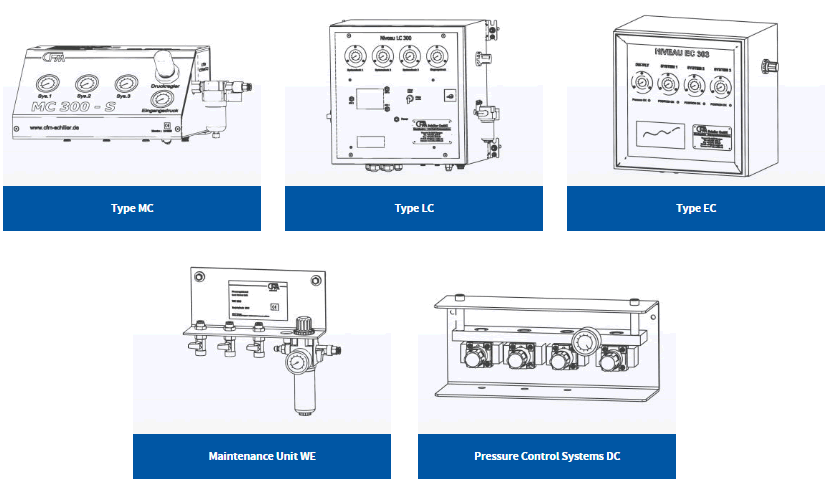

LEVEL CONTROL SYSTEMS

All kind of air springs have to be controlled by a pressure- or level- control. This allows to control the working heights of the test rig during operation. Furthermore a supply unit is necessary. This supply unit can be integrated in the level-control or it can be an external unit. With the supply unit the input pressure is adjusted, the water is drained from the compressed air and the vibration isolation system is decoupled from the air supply.
