BASE PLATES
CFM ITBONA develops, manufactures, and installs clamping plates made of cast iron, steel, stainless steel, or in a hybrid design from steel or stainless steel and polymer concrete. According to the customer-specific application and the technical requirements, our engineers select the right product for your needs..
Clamping plates from CFM ITBONA allow adaption, positioning, and clamping of all components required in the test setup. Plates are made from the basic materials gray cast iron, steel, and stainless steel. They come in a solid version or in a hollow version with rib structure. Both versions are anchored and grouted on foundations in a dynamically fatigue rated way. Solid clamping plates can also be mounted directly on spring elements. The hybrid design, which basically is a hollow body entirely filled with polymer concrete, is also supported directly on spring elements.

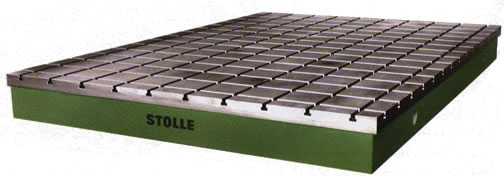

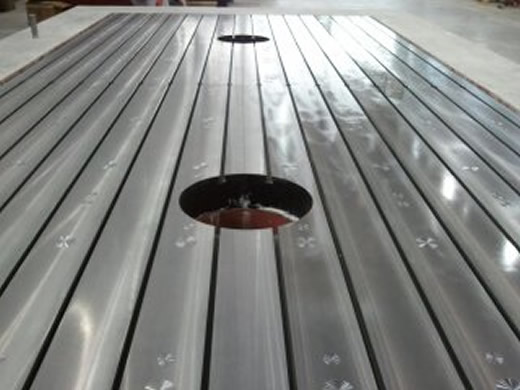

The upper side of the clamping plate is generally machined with T-slots according to DIN 650. These can run in longitudinal, transversal, or both directions at customer’s option. Alternatively, the upper side can be manufactured with a hole pattern or a customized combination of holes and T-slots.
CFM ITBONA offers customized solutions for your requirements regarding shape and size. Maximum dimension and weights differ for different plate types due to manufacturing processes. To enlarge the working space, multiple single plates can be assembled to a clamping field. This works for all types of clamping plates. The connection is realized with high-strength bolt joints.
When leakage of oil is expected, an oil retention system is offered for reasons of environmental protection. The sensors are certified according to the German Federal Water Act (WHG). Among other things, it comprises a circumferential oil channel and an oil reservoir for larger leakage amounts. Grouting and adjustment holes used for mounting procedures on a foundation can be oilproof for all types of plates. Furthermore, all joints between clamping plates on a clamping field can be sealed against oil.
The CFM Engineers gladly assist you with the selection of the right clamping plate. FEM analyses are applied during the layout process for your specific application. Feel free to contact us with detailed specifications for a non-binding quotation
|
