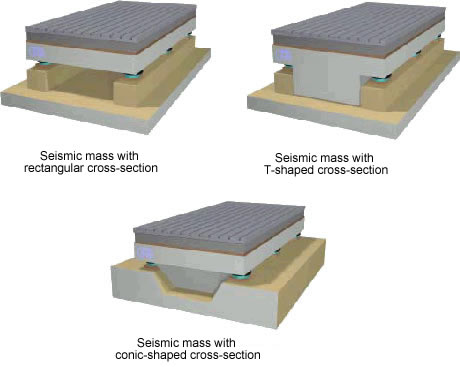

Foundation Block

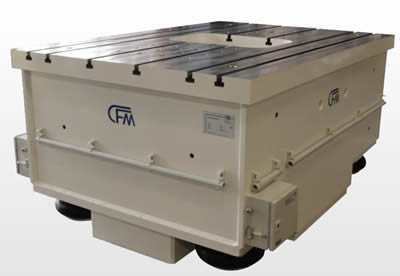

Usually the foundation block is a steel-concrete-construction individually designed for special customer´s use. In most applications the concrete block is covered with a cast iron floor plate. Here it is possible to realize seismic masses up to 2000 tons.

CFM-Schiller performs the calculation, layout, design and manufacturing of vibration isolated seismic masses for the dynamic testing industry, manufacturing industry (presses, forging hammers) and coal mills.

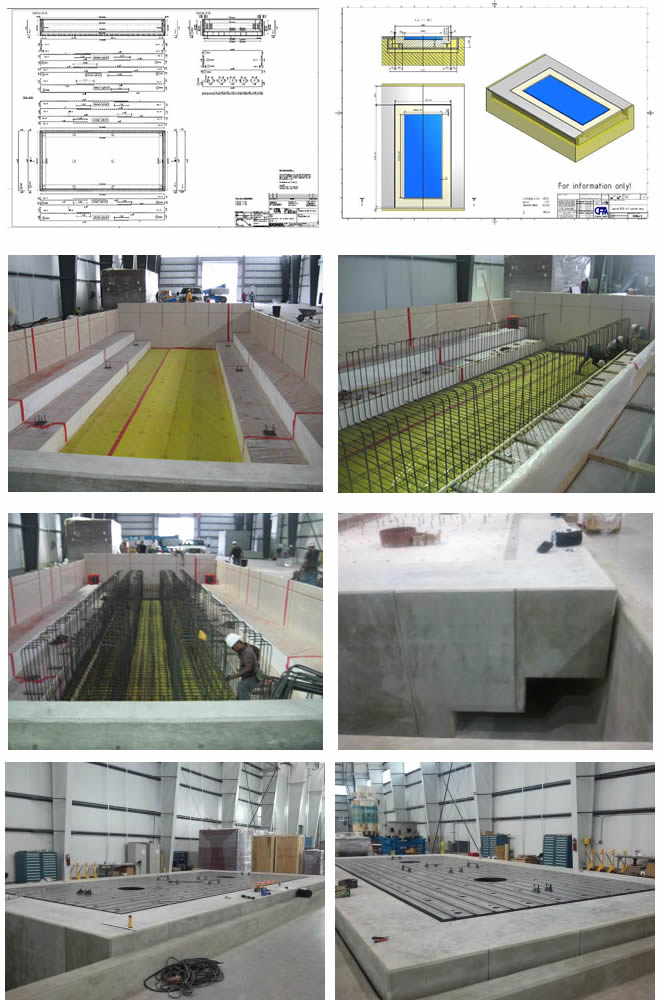

For an overview on the build stages of a seismic mass with anchor frame construction click here

download pdf brochure
(see page 2 of the brochure)
