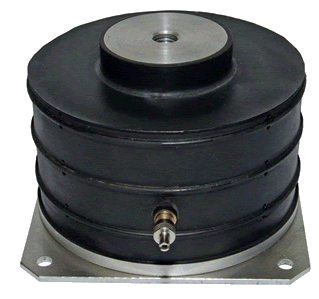

Membrane Convolution Air Springs Type MBZ

Design:
Membrane convolution air spring consisting of elastomer metal housing with screwed base plate,elastomer air chamber with steel rings einforced.

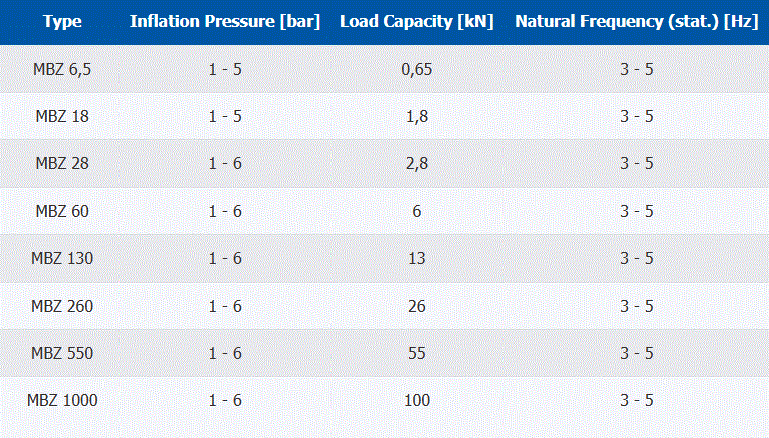

Technical specification:
Vertical and horizontal stiffness approx. 1:1, no anchorage necessary for assembly, natural freqency: approx. 3 - 5 Hz
Range of level:
Levelling range: + 6 mm

Type
Outer Diameter D
Height Ho
Weight
Load Capacity
mm
inch
mm
inch
kg
lbs
kN
lbf
MBZ 6.5
73
2.87
65
2.56
0.3
0.7
0.65
146
MBZ 18
105
4.13
65
2.56
0.7
1.6
1.8
405
MBZ 28
127
5.00
90
3.54
1
2.3
2.8
630
MBZ 60
172
6.77
90
3.54
1.8
4.1
6
1,350
MBZ 130
245
9.65
90
3.54
5.4
12.2
13
2,925
MBZ 260
338
13.31
90
3.54
10.7
24.1
26
5,850
MBZ 550
468
18.43
90
3.54
29.1
65.5
55
12,375
MBZ 1000
610
24.02
90
3.54
38.6
86.9
100
22,500



download pdf brochure
