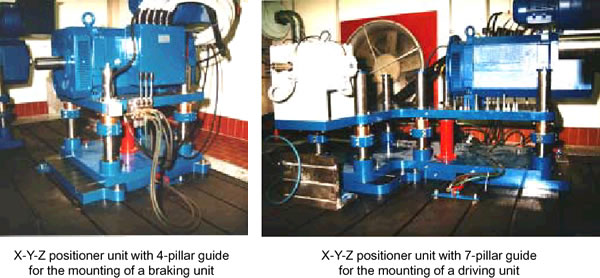

X-Y-Z-Positioner System for Driveline Test Rigs

Four X-Y-Z-positioners for the load units and one X-Y-Z-positioner for the driving unit were
manufactured for an all-wheel driveline test rig. A base plate functions to shift the complete positioner unit in X-direction. An intermediate plate is used for the movement in Y-direction. The die set for the adjustment in Z-direction is also fixed on this plate. The number of pillars depends on the design of the respective unit. A top plate carries the electric motor.

Positioning:
Differential thrustors or alternatively gear motors and trapezoid spindles are used for the shifting in X- and Y-direction. The Z-adjustment of the top plate is realized by means of plunger cylinders. The separate moving plates can be clamped manually or with spring clamps.
