Torsional Systems

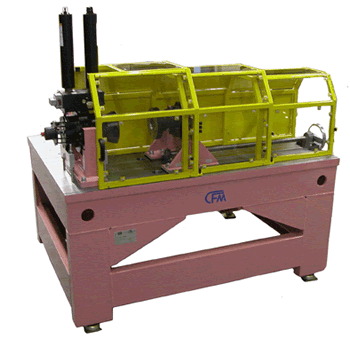

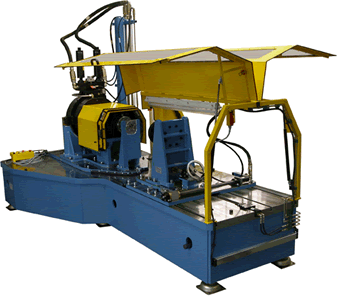

Torsional Test Systems are commonly used for fatigue tests or ultimate strength tests on rotating parts like drive shafts or propeller shafts, gears, clutches, sprague clutches and more. We can offer the complete test setup (without rotary actuator and controls) or parts like the table, reaction bracket, support bearing etc.
