| | engine tilting platform
| transmission tilting platform |
Engine
Test Fixture
 The

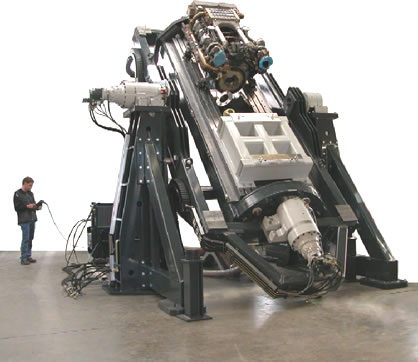

engine test rig is designed to tilt an engine in X and Y direction.
The
test system shown here with a large Diesel Engine and absorbing
unit (not installed) can simulate hill climbing, especially
important for Off-Road and Military vehicles. This system
makes it possible to analyze the oil slew behaviour in the
oil pan during the hill climbing. The engine is running throughout
the test while the simulator tilts the table simulating the
real off-road conditions in the field.
Technical
data:
Weight: 18,5 tons
Angle of slew
- X- and Y-direction: each ± 45°
- Swiveling rate: 0,5-1,5°/s
|
