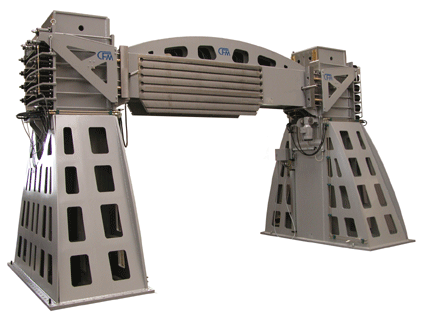

Axle Restrain System for Commercial Heavy Vehicle Axles
to use with controlled and uncontrolled axle test rigs

used as an universal mounting device for commercial heavy vehicle axles in fixed axle design and
as McPherson type axles with support frame

Special feature:
The crosshead can be removed easily or automatically height adjusted.
The crosshead is clamped automatically after the adjustment using our CFM springs clamps.

The natural frequency of this axle restrain system is about 45 Hz.
