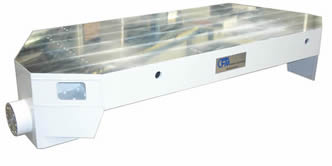

Multi-Axial Shaking Table

The shaking table is frequently employed with axial test rigs to accommodate test specimens. It must be designed to withstand the high loads of dynamic testing. This means it must possess high strength with lowest possible mass and also be free of natural frequencies in the test frequency range.

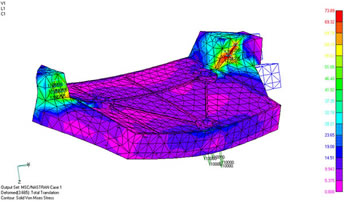

In accordance with customer specifications in terms of geometrical dimensions and actuator application points we design tables adjusted to the flow of forces and which possess natural frequencies above the highest test frequency. The top can be equipped with slots or thread inserts as required.
