Maintenance Platform

In order to enable maintenance and installation operations on dynamic test rigs, we manufacture "customised" maintenance platforms. Test rig installations and movement clearances are already taken into account during the design.

If required, we integrate moving elements that can be positioned outside the range of motion for test operation.

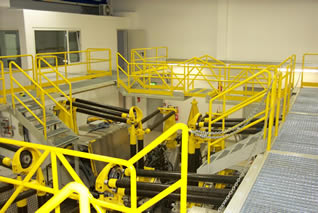

M
aintenance platforms for a full car test rig
Customer: Karmann, Osnabrück (Germany)

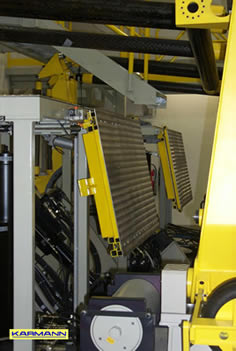

Moving part of the lower working platform_
