MOCOKIT - MODULAR CONSTRUCTION KIT
The modular Clamping System for your Test Setups
Are you operating your own testing laboratory for component testing or planning a new one?
Apart from servo-hydraulic components like linear and rotary actuators, you also need appropriate fixtures to mount actuators and specimens flexibly and safely. When test setups are frequently modified, modular solutions are particularly useful in order to minimize investment costs.

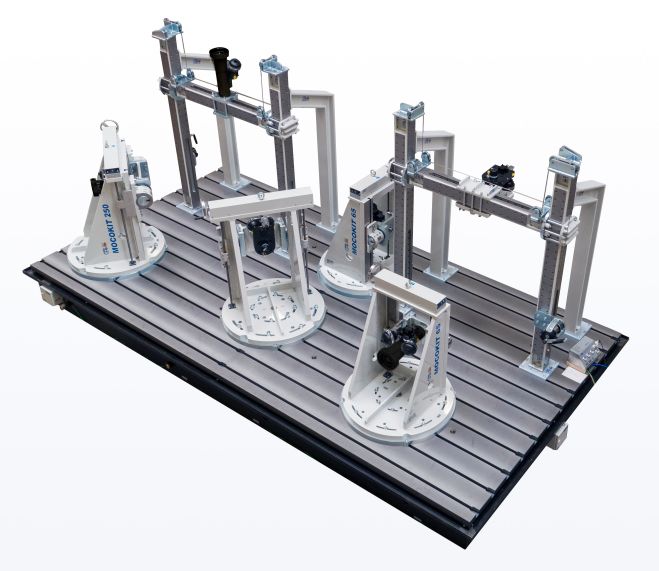

With our universal modular construction kit MOCOKIT®, we provide you with the flexibility you need in your daily business – high quality at affordable prices. MOCOKIT® is specially tailored to meet the requirements of component testing and fulfils the demands of state of the art test labs in terms of rigidity, mounting, and versatility. Design and completeness of the MOCOKIT® system are unmatched in the market.
Actuators and specimens are easily mounted with customized adapter plates, which can be supplied by the customer or manufactured by us. Various sizes, graded by their maximum permissible static load, allow you to construct test frames for static forces up to 600 kN. All screw joints are slip resistant, thus guaranteeing a high stiffness of the joints even under reversed bending loads.
Only few tools are needed to modify the components to a new test setup. Base for the construction of a MOCOKIT® system are clamping plates with T-slots. These clamping plates made of cast iron, steel or special materials are also part of the wide product range from CFM Schiller.
We look forward to assisting you in the selection of the required components for your particular test setup..
Following are the standard available sizes:
(* continuous adjustment possible with clamping flange)
MOCOKIT 25
Load with actuators up to 25 kN static or 18 kN dynamic
Adjustability: stepless*
MOCOKIT 65
Load with actuators up to 65 kN static or 46.8 kN dynamic
Adjustability: 75mm increments and alternatively stepless
MOCOKIT 250
Load with actuators up to 250 kN static or 180 kN dynamic
Adjustability: 100 mm increments and alternatively stepless
MOCOKIT 400
Load with actuators up to 400 kN static or 288 kN dynamic
Adjustability: 200 mm increments
MOCOKIT 600
Load with actuators up to 600 kN static or 500 mkN dynamic
Adjustability: 250 mm increments
|
