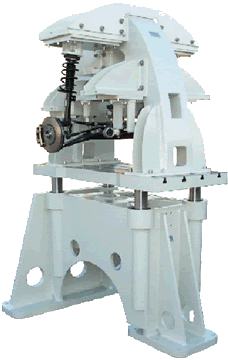

Axle Support Fixtures EAB for Axle Test Rigs
 The
system EAB is used as an extremely stiff holding fixture
for axles or their components tested and evaluated for
durability, kinematics and suspension design. The system
can easily be employed for all popular axle types (multiple
and double control arms, Mc Pherson) both for front
and for rear axles.
Technical
information:
The
very rigid design of the EAB guarantees test results
which are not influenced by any chassis stiffness. Therefore
test results replicate the true characteristics of the
axle itself without any interference of its environment.
The
1st. natural frequency of the system is approximately
96 Hz (without height adjustment table) and because
of this high natural frequency the signal quality is
not affected. (
Goto Page 2 )
